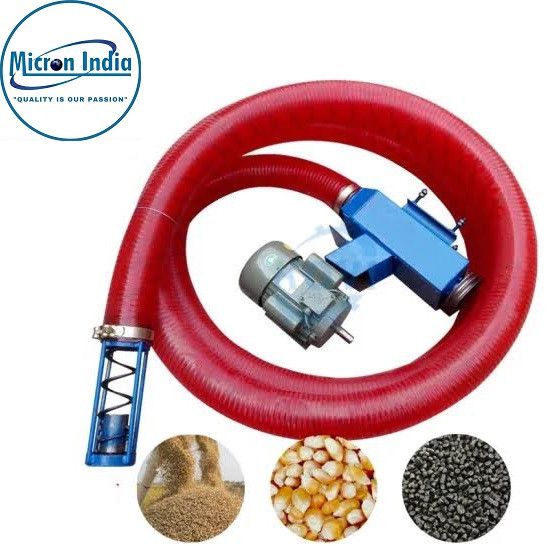

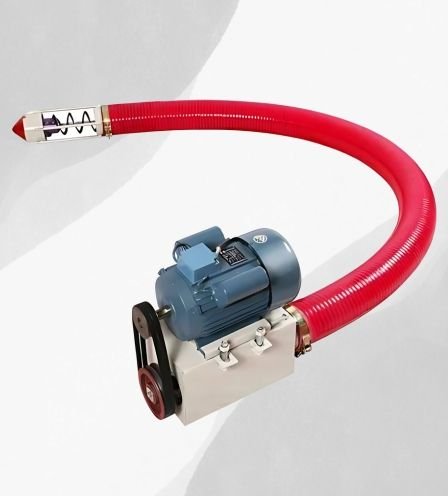

Flexible Screw Conveyor

Flexible Screw Conveyor – Typical Specifications Capacity

• Conveying Capacity: 200–3000 kg/hr (depends on material and screw diameter)
• Conveyor Length: 2–12 m (custom lengths available)
• Pipe Diameter: 50 mm, 75 mm, 100 mm, 125 mm, 150 mm, and 200 mm

Construction

• Product Contact Parts: SS304 (SS316 optional)
• Outer Tube: Food-grade flexible PVC/PU tube or SS tube (application dependent)
• Flexible Spiral: High-strength spring steel or stainless steel
• Frame: SS304 with lockable castor wheels
• Surface Finish: Mirror polished (SS parts)

Drive System

• Motor: 0.5–5 HP (based on length and capacity)
• Gearbox: Helical or worm reduction gearbox
• Power Supply: 415 V, 3 Phase, 50 Hz
• Conveying Speed: Variable (with optional VFD)

Approximate Dimensions

• Length: 6–40 ft (1.8–12 m)
• Pipe Diameter: 2–8 inch (50–200 mm)
• Feed Hopper Capacity: 30–150 Liters (optional)
• Discharge Height: Up to 20 ft (6 m)

Approximate Machine Weight

• 100–350 kg (depending on length and diameter)

Recommended Installation Space

• Floor Space: Approximately conveyor length × 3 ft (0.9 m)
• Working Clearance: Minimum 2 ft (600 mm) around the machine
• Room Height: Based on the required discharge height

Standard Features

• Flexible conveying path (horizontal, inclined, or vertical)
• Dust-free material transfer
• Gentle handling with minimal product degradation
• Easy installation and relocation
• Low maintenance
• Quick dismantling for cleaning
• Optional VFD for speed control
• Optional hopper with level sensor

Applications

• Pharmaceutical powders
• Food products (flour, spices, sugar, milk powder)
• Chemicals
• Plastic granules
• Cement and minerals
• Coffee, tea, and grains
• Cosmetic powders
• Animal feed

Typical Conveying Angle



• 0° to 90°, depending on the material and conveyor configuration.
