1.20 Lac - 1.50 Lac / piece
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader, Distributor, Importer, Buying House |
| Brand Name | MICRON INDIA,Micron India |
| Driven Type | Electric |
| Color | Grey, Silver |
| Click to view more | |
Product Details
Condition
New
Automatic Grade
Semi Automatic
Power
1-3kw
Application
Coating Tablets,Industrial
Certification
CE Certified, ISO 9001:2008
Warranty
1year
Country of Origin
India
Finishing
Polished
Operating Type
Automatic
Product Code
MILCP
Port
kandala
Payment Terms
Other
Delivery Time
15days
Packaging Details
CUSTOMIZE

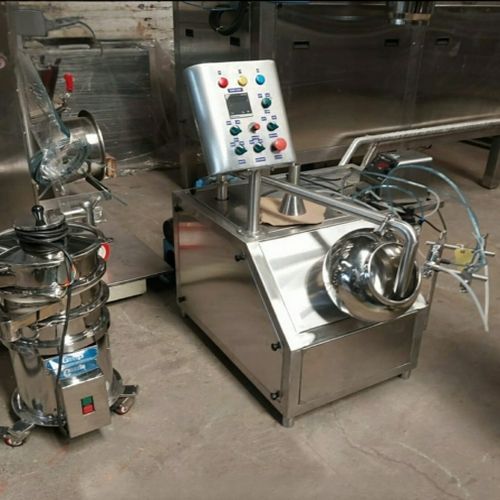

Laboratory Coating Pan – Typical Specifications
Capacity
- Batch Capacity: 1–5 kg
- Pan Volume: 8–15 Liters
- Product Contact Parts: SS304 (SS316 optional)
- Pan Material: Stainless Steel with mirror polish
- Frame: SS304 or powder-coated MS
- Surface Finish: Mirror polished contact surfaces
- Motor: 0.25–0.5 HP
- Pan Speed: 10–40 RPM (Variable Speed)
- Power Supply: 230 V, Single Phase, 50 Hz
- Electric hot air blower
- Digital temperature controller
- Temperature Range: Ambient to 80°C
- Pan Diameter: 12–18 inches (300–450 mm)
- Overall Length: 2–2.5 ft (600–750 mm)
- Overall Width: 1.5–2 ft (450–600 mm)
- Overall Height: 2.5–3 ft (750–900 mm)
- 40–70 kg
- Minimum Floor Space: 3 ft × 3 ft (0.9 m × 0.9 m)
- Recommended Working Area: 5 ft × 5 ft (1.5 m × 1.5 m)
- Minimum Room Height: 7 ft (2.1 m)
- Variable-speed pan rotation
- Tilting pan for easy loading and unloading
- Stainless steel perforated or solid pan options
- Digital temperature controller (optional)
- Hot air blower system (optional)
- Easy cleaning and maintenance
- Compact laboratory design
- Tablet sugar coating
- Film coating
- Pellet coating
- Seed coating
- Research and development
- Pilot-scale pharmaceutical production
- Food and confectionery coating
